Our smallest trailer available the simple trailer is exactly that, simple.
They last forever and are extremely low maintenance. Perfect for transporting small excavators or for farm work. Two models are available the 2 axle and 3 axle Simple trailer.
1 models are available in this range

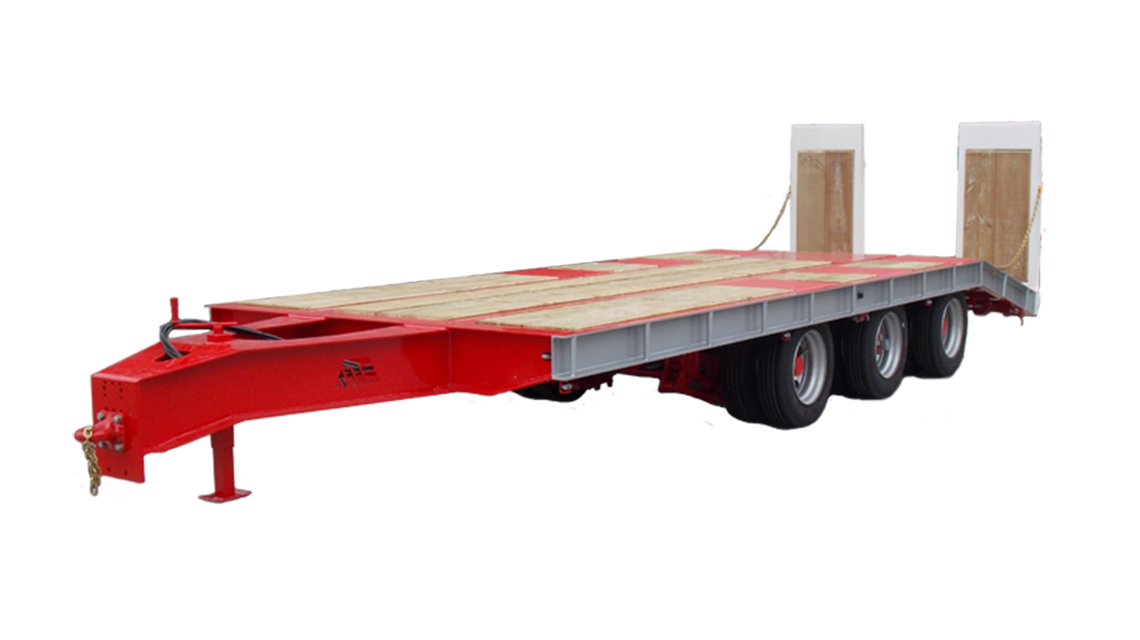

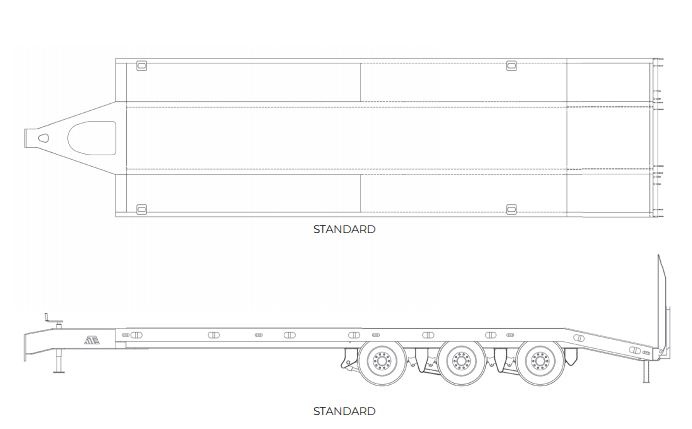

3 axle Simple Trailer
The simple trailer is our smallest trailer available. They last forever and are extremely low maintenance. Perfect for transporting small excavators or for farm work. Customisable options are also available.
| STANDARD SPECIFICATIONS | |
| Width – | 2490mm |
| Deck Length – | 7500mm |
| axles – | 15” Ten stud |
| Suspension – | 3 leaf spring |
| Brakes – | 12-1/4 x 7-1/2” with outboard drums |
| Brakes – | ABS complies with new brake rule |
| Tyres – | 215 x 17.5 |
| Wheels – | Steel wheel |
| Lighting – | LED multi voltage |
| Drawbar – | 5,000kg |
| Tow-eye – | Pintle hook or 40mm tow-eye |
| Ramps – | 1600 x 860 Hydraulic ramps |
| Toolboxes – | In drawbar |
| Deck Material – | 6mm Cheka plate deck |
| OPTIONAL EXTRAS | |
| Wheels – | Aluminium wheels machine finish (12.8kg wheel) |
| Wheels – | Aluminium wheels polished finish (12.8kg wheel) |
| Tyres – | Specific branded tyres (please state) |
| Tyres – | Extra spare tyre and steel wheel |
| Hydraulics – | Hydraulic hand pump |
