Designed to be coupled with a Prime Mover or Dolly and Jinker. The 50 – 60 Tonne Beam Set allows large awkward sized loads to be carried. Which Would not fit on a standard transport trailer.
3 models are available in this range

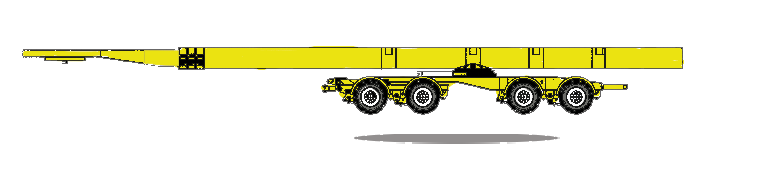

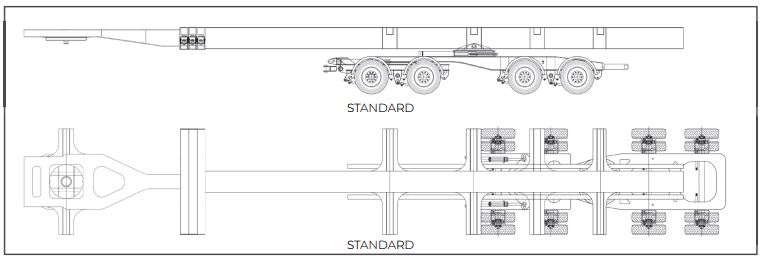

44 Metre Triple Extendable Beam Set
Designed to be coupled with a Prime Mover or Dolly and Jinker, the 44 Metre Extendable Beam set allows a extremely long load to be carried, which would not fi t on a standard transport trailer.
| STANDARD SPECIFICATIONS | |
| Max Length – | 44,000mm |
| Width – | 2500mm |
| King Pin – | MTE 90mm |
| Positions – | 4 Sets of positions for a 4R4 Jinker |
| Tare – | 9,000kg |
| Capacity – | 50,000kg |

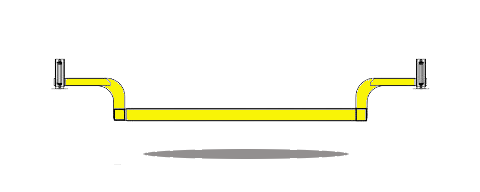

50 Tonne Expandable Beam Set
Designed to be coupled with a Prime Mover or Dolly and Jinker. The 50 Tonne Expandable Beam Set allows large awkward sized loads to be carried. Which Would not fit on a standard transport trailer.
| STANDARD SPECIFICATIONS | |
| Beam Deck Height – | Lowered 600mm – Raised 1400mm |
| Width – | Closed 2500mm – Open 4100mm |
| Length Closed in Well – | 10,715mm |
| Length Open in Well – | 19,236mm |
| Length K/P to K/P closed in well (closed ends)- | 16,845mm |
| Length K/P to K/P closed in well (open ends)- | 19,208mm |
| End extend by increments – | 5 of 1700mm |
| Locks and Pins – | Air locks and pins at 1000mm centers |
| Gooseneck Height – | Gooseneck height 54”, Hydraulic raising 800mm |
| Capacity – | 50,000kg capacity evenly distributed |
| Power Source – | Hydraulic power source Dolly or Truck |
| Lights – | LED |
| Hydraulic Cylinders – | Raising by 2 x 6” Hydraulic cylinders |
| King Pin – | 2” & 3-1/2” King pin 1 position |
| Beam Material – | High strength JFE hiten 780, Tensile 780mps -930mpa |

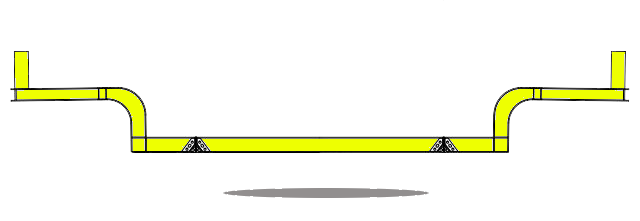

60 Tonne Vessel Beam Set
Designed to be coupled with a Prime Mover or Dolly and Jinker. The 60 Tonne Vessel Beam Set allows large vessels to be carried. Which Would not fit on a standard transport trailer.
| STANDARD SPECIFICATIONS | |
| Beam Depth – | 500mm |
| Vertical travel – | 800mm |
| Fixed Width – | 3300mm |
| Radius for Vessel – | 6000mm |
| Gooseneck Clearance – | 3700mm |
| Beam Material – | High Strength JFE Hiten 780, Tensile 780mps-930mpa |
| King Pin – | 3-1/2” King pin 1 position on an Hydraulic skid plate |
| Beam Length – | Air locks and pins at 1000mm centers |
| Rams – | Gooseneck height 54”, Hydraulic raising 800mm |
| Hydraulics – | 50,000kg capacity evenly distributed |
| Lights – | LED |
| Capacity – | 60,000kg |
| Tare – | 20,000kg |
